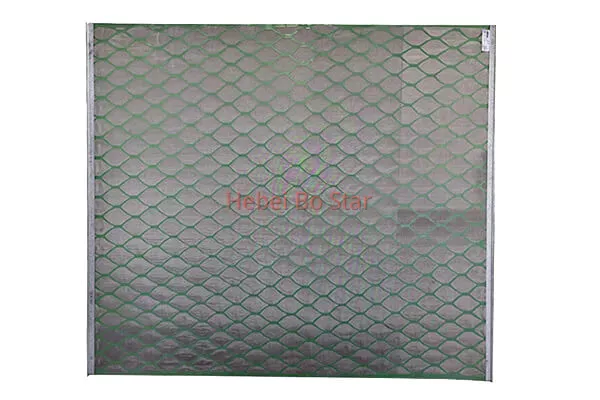

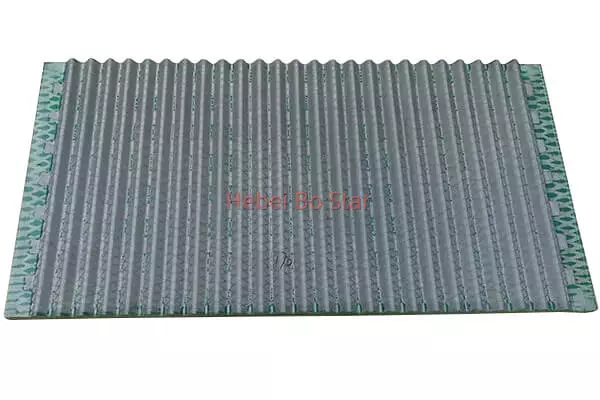

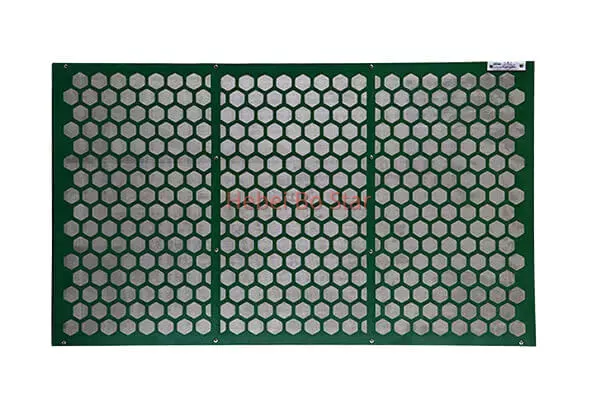

Compound Screen Mesh
Compound screen mesh is similar with the hookstrip flat screen on the structure.
Share
Related products
Describe
The main features of the compound screen mesh is as follows:
- By 2 to 4 layers of stainless steel mesh cloths bonding as a whole without metal foils.
- Install on the shaker by the way of crisperding without metal branch cuttings fiber towel glue and with large effective area.
- The wire diameter of the bottom layer of the screen mesh is relatively coarse, which plays the roles of screening and supporting with the upper layer and extends the life of the screen.
Common Model of Compound Screen Mesh
|
Screen No. |
Fit for Shaker Model |
Rang of Mesh (API) |
Dimension |
Material |
|
BXG-01-TR |
Triflo |
10 - 635 |
1205x800mm |
SS 316L |
|
BXG-02-TR |
Triflo |
10 - 635 |
1205x900mm |
SS 316L |
|
BXG-03-S |
MI SWACO |
10 - 635 |
1220x1140mm |
SS 316L |
|
BXG-04-N3 |
NCS-300 |
10 - 635 |
1040x600mm |
SS 316L |
|
BXG-05-Z |
ZCN |
10 - 635 |
1400x460mm |
SS 316L |
|
BXG-06-N1 |
NS-115/2 |
10 - 635 |
1150x1000mm |
SS 316L |
|
BXG-07-J |
JSS(USA) |
10 - 635 |
937x914mm |
SS 316L |
|
BXG-08-S |
SSS(USA) |
10 - 635 |
1524x1219mm |
SS 316L |
|
More replacement shale shaker screens are available upon request. |
||||
Remark:
Hebei Bo Star only provide replacement screens, not original screens.
