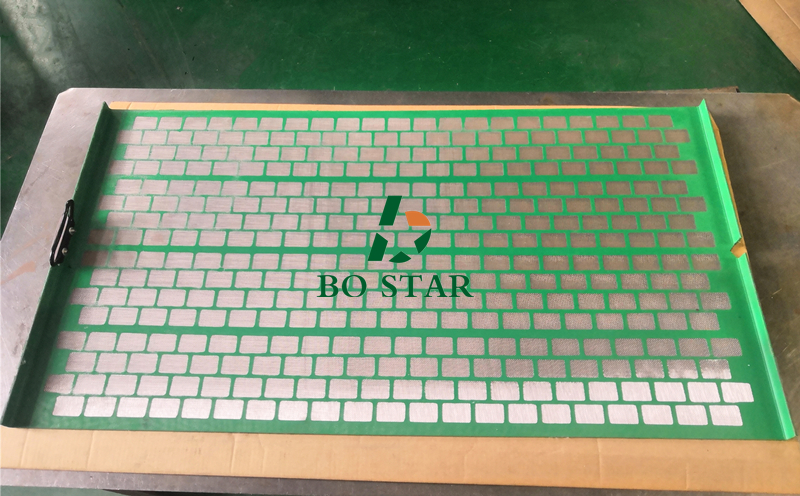

BXA-02 FLC 500 Replacement Screen Flat Panel
Bo Star Shaker Screen Replacement
For use with 500 series Shakers (flat)
Share
Describe
Bo Star Shaker Screen Replacement
For use with 500 series Shakers (flat)
| Bo Star Screen |
Wave/Flat |
Layers | Weight(Kg) | Non-Blanked Area (sq.ft) | Mesh Type | Screen Dimensions |
| BXA-02 | Flat | 2/3 | 6.85 | 4.05 | DX,HP,DF | 1050x697mm (41.5" x 27.75") |
Compatible shale shakers:
1.503 shaker;
2.504 shaker;
3.503 drying shaker;
4.504 drying shaker;
5.513 shaker;
6.514 shaker;
7.513 VE (Vapor Extraction);
8.514 VE (Vapor Extraction).
Remarks:
Hebei Bo Star only provide replacement screens, not original screens.
